Description

iFlight's newly upgraded Defender series, a lightweight cinewhoop equipped with the DJI O4 Air Unit. Featuring a compact 2-inch palm size, easy to carry. With low flight noise, it enables indoor filming without disturbance.

Supports a Type-C charging adapter* for fast charging, making it convenient for outdoor use. The prop guard can be quickly disassembled with only 4 screws, allowing for more agile flight. Perfect for indoor flying, short trips, camping, and everyday shooting scenarios. Experience a new level of FPV cinematic flight.

Highlights

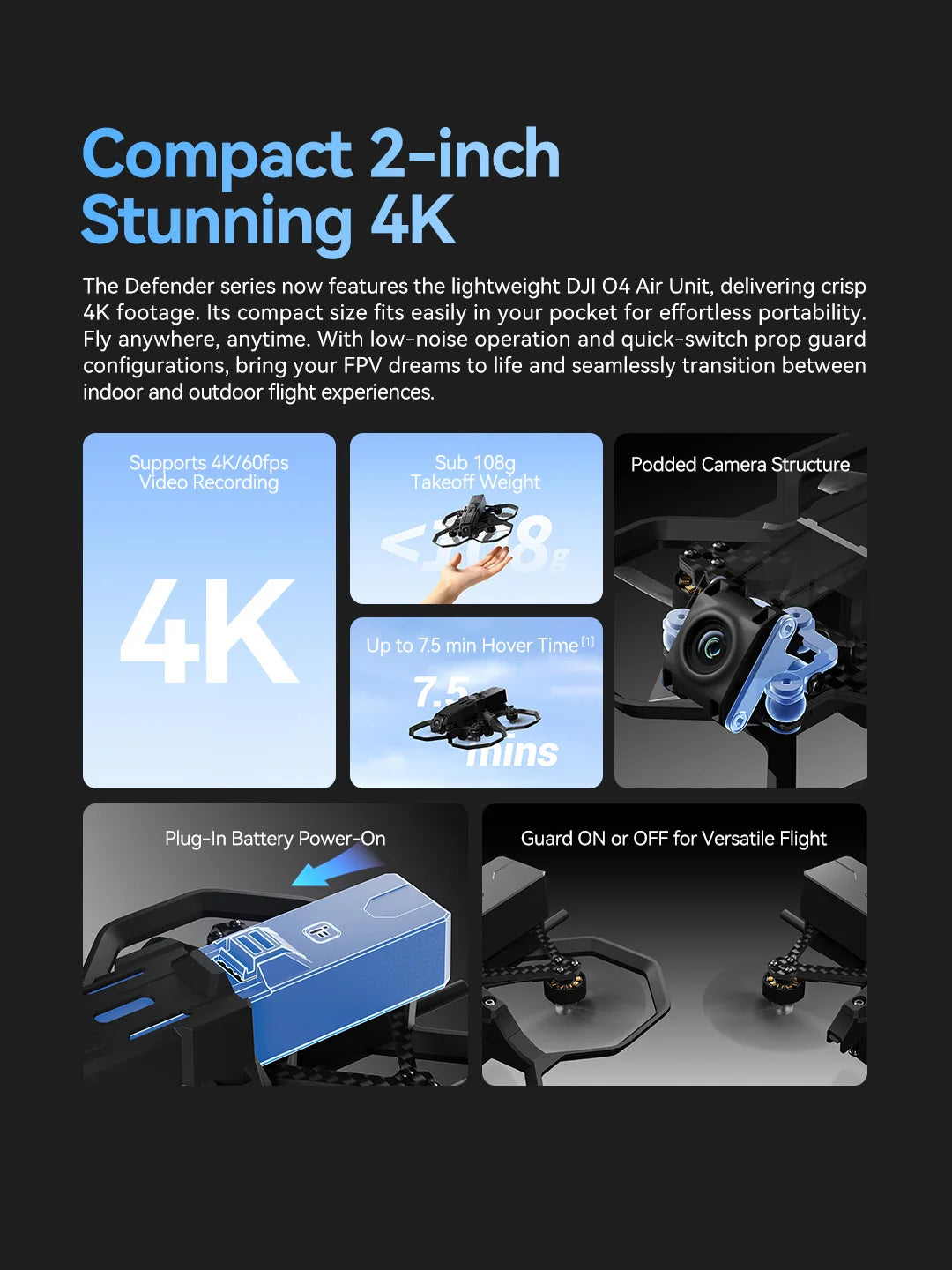

4K HD Video Recording:
Built-in DJI O4 Air Unit 4K recording in a lightweight 2-inch frame with stabilization and Gyroflow support. With large storage capacity and low-latency, long-range video transmission, it ensures smooth first-person view footage for a more immersive flight experience.

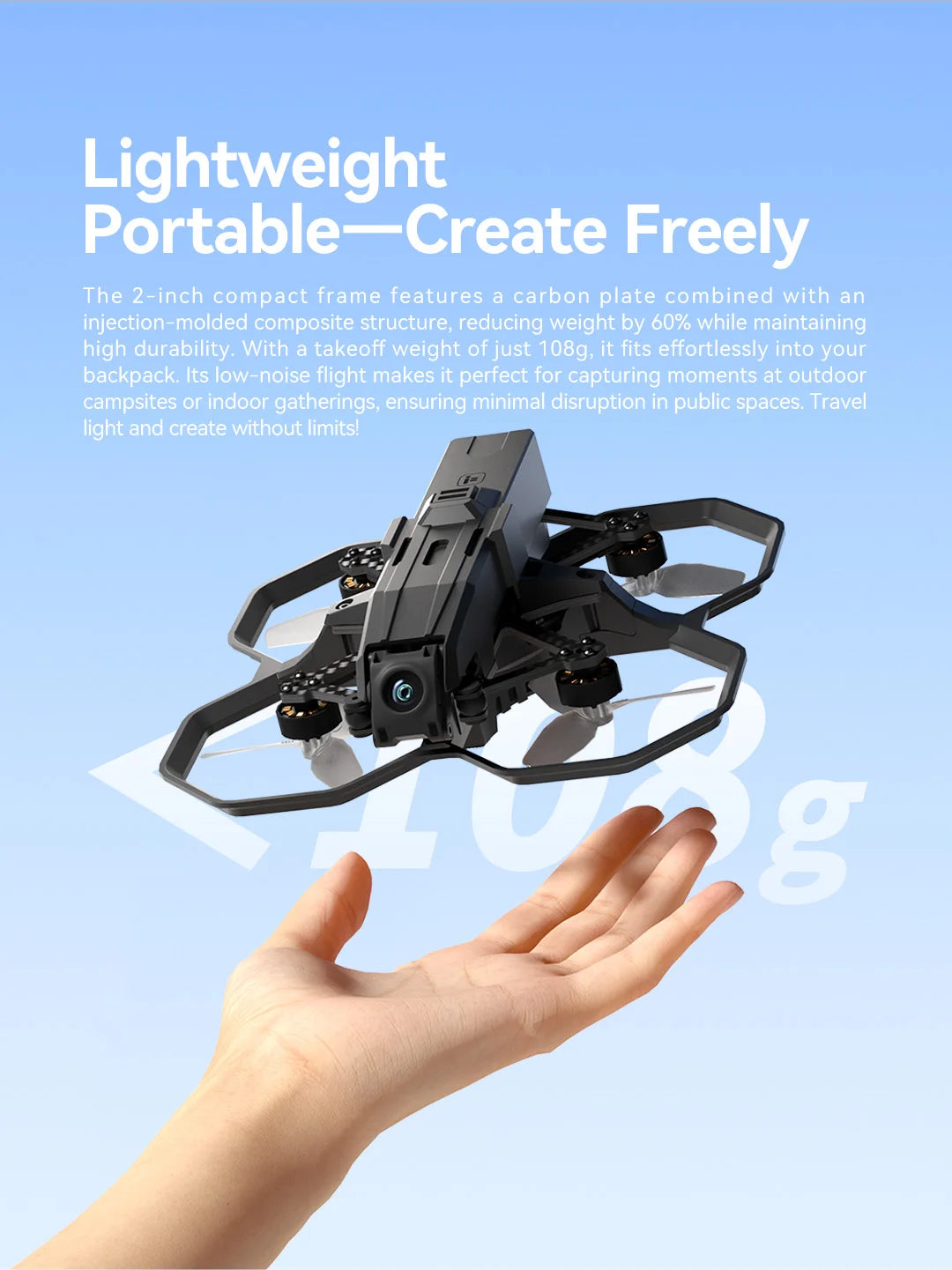

Lightweight and Portable:
Designed with a compact palm-sized frame, this device easily fits in a pocket for convenient portability. Its ultra-lightweight build and low flight noise make it ideal for undisturbed indoor flying, while its versatility allows it to navigate complex and narrow environments.

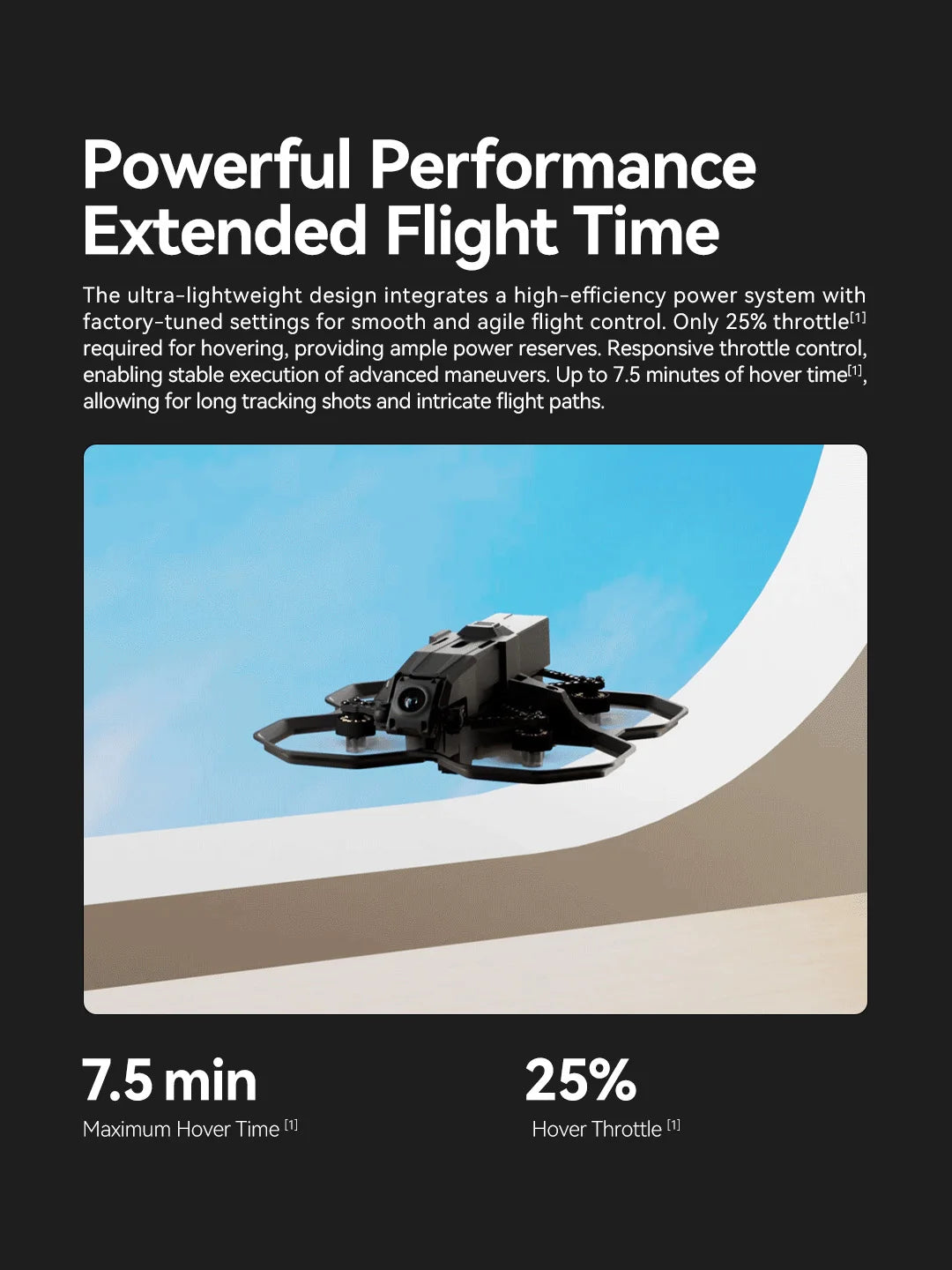

Enhanced Flight Performance:
With hover throttle as low as 25%, this device provides ample power for effortless flight. It offers up to 7.5 minutes of flight time, extending creative possibilities and ensuring a smooth and enjoyable flying experience.

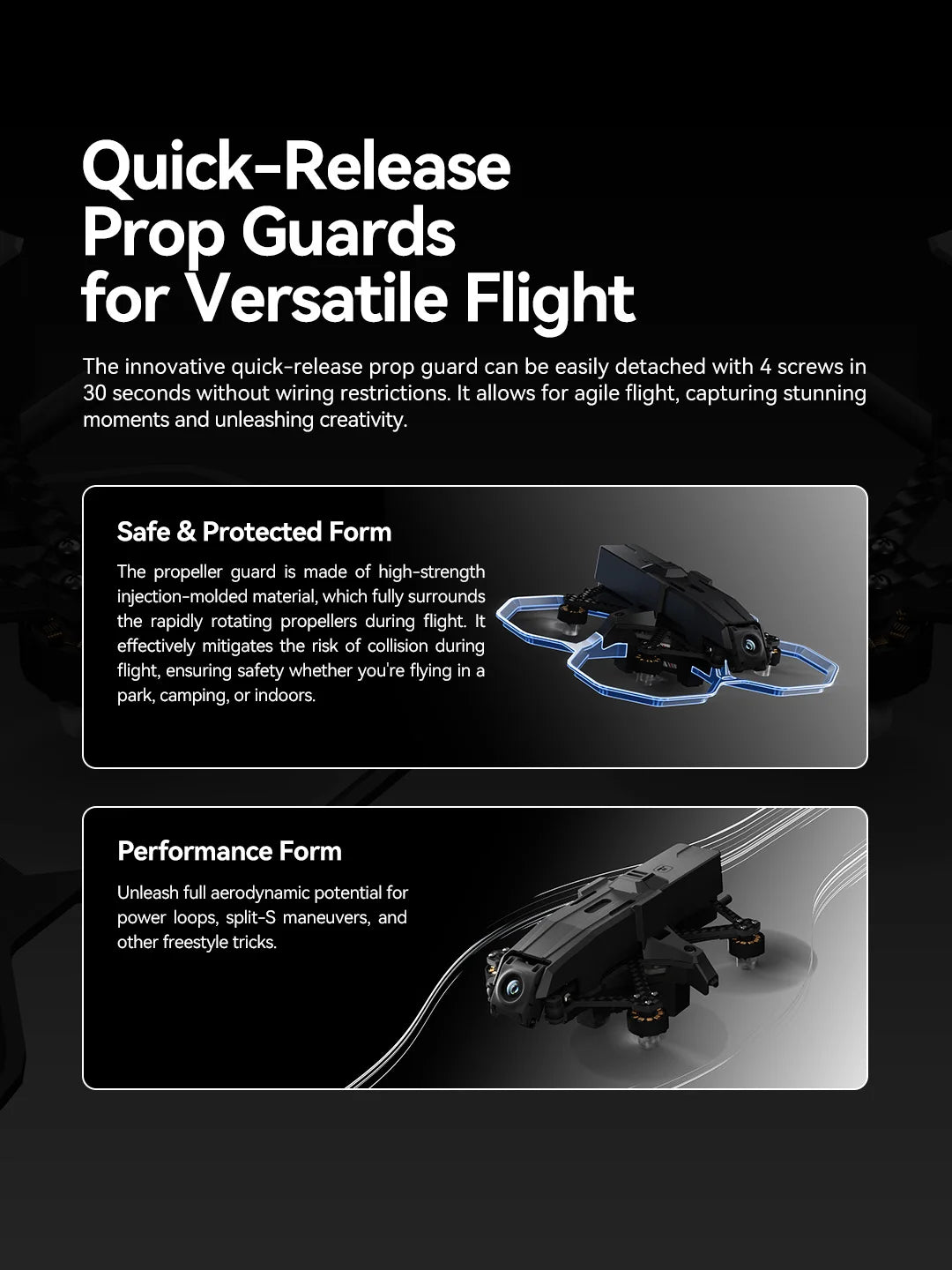

Quick-Release Prop Guard for Seamless Switching:
The prop guard enhances safety by preventing accidents during crashes, while its quick-release design allows for seamless switching. Removing the prop guard increases agility, enabling dynamic freestyle maneuvers for more advanced flying techniques.

Podded Camera Structure :
The customized O4 camera mount features an independent podded structure to minimize vibration, ensuring raw footage remains as smooth as possible. It also provides high-quality gyro data for in-built or post-processing stabilization, delivering jello-free results.

Plug-in battery with Automatic Power-On:
Simplifying operation, the device automatically powers on when the battery is inserted, making it user-friendly and ready to fly in seconds.

Specification

Product Name: Defender 20 Lite O4 2S HD
Flight Electronics: F411 AIO
Video Transmission: DJI O4 Air Unit
Frame wheelbase: 87mm
Motor: Defender 16 1103 14000KVmotors
Prop: Defender 20 Lite 2020*3 props
Weight: 69±3g
Takeoff Weight: Approx. 108±3g (With 600mAh Battery)
Dimensions (L×W×H): 125*125*44.5mm
Max Speed: 75km/h (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 6.5-7.5 mins(with 2S 600mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C
Antennas: Single Antenna
GNSS: N/A

Video Transmission

Product Name: DJI O4 Air Unit
Image Sensor: 1/2-inch CMOS Sensor
Lens: FOV: 117.6°
ISO: 100-6400 (Auto); 100-12800 (Manual)
Video Resolution: 1080p/100fps H.265
Video Format: MP4
Max Video Bitrate: 100 Mbps
Color Mode: Normal Mode
Live View Quality: 1080P@30/50/60/100fps
Operating Frequency: 5.170-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP): .1 GHz: <23 dBm (CE); 5.8 GHz:<30 dBm (FCC)<14 dBm (CE)< 30 dBm (SRRC)
Max Video Transmission Range(With DJI Goggles 3/DJI Goggles N3): 10 km (FCC), 6 km (CE), 6 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Single antenna
Built-in Storage: 23GB
Supported SD cards: Not supported
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 8.2 g
Dimensions: Transmission Module: 30×30× 6 mm (L×W×H)

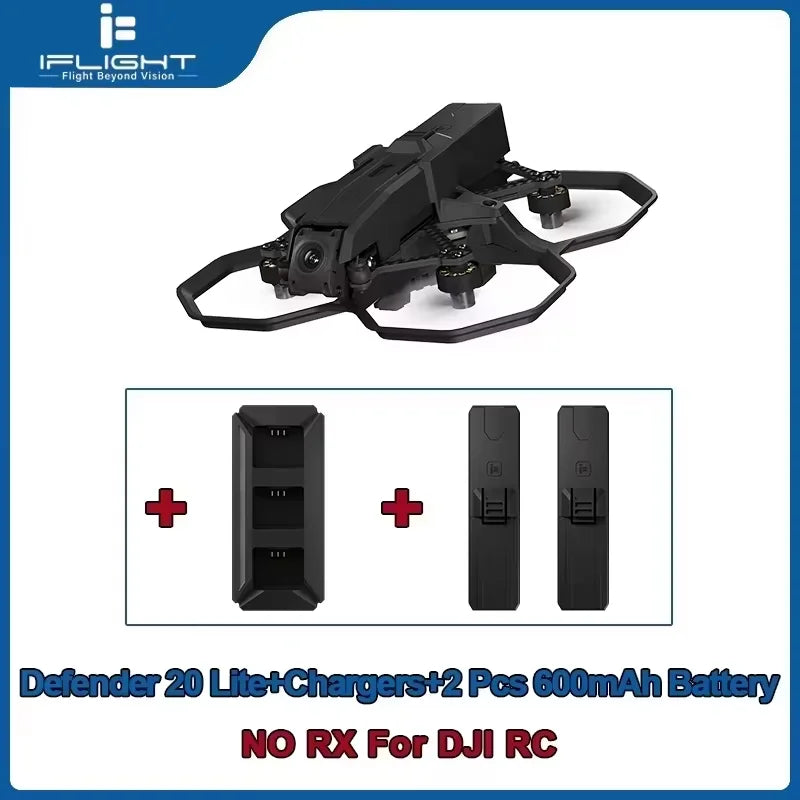

Packing List

1 x Defender 20 Lite O4 HD BNF
1 x Defender 20 Lite 2S 600mAh Battery
1 x Charging Adapter
2 x Defender 20 Lite 2020-3 Props (pairs)
1 x Propeller Removal Tool
1 x Defender 20 Carrying Case
