Material: Monocrystalline Silicon

Maximum Power(Pmax): 100W±3%

Maximum Power Voltage(Vmp): 18.00V

Maximum Power Current (Imp): 6.1A

Open-Circuit Voltage (Voc): 22.5V

Short-Circuit Current (Isc): 6.35A

Nominal Operating Cell Temp. (NOCT)-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension: 28" x 20.5" x 0.47"/70cm x 50cm x 1.2cm

Expansion Dimension: 40" x 28" x 0.24"/100cm x 70cm x 0.6cm

Net Weight: 2.7kg

Package Weight: 3.6kg

Package Size: 75cm x 58cm x 7cm

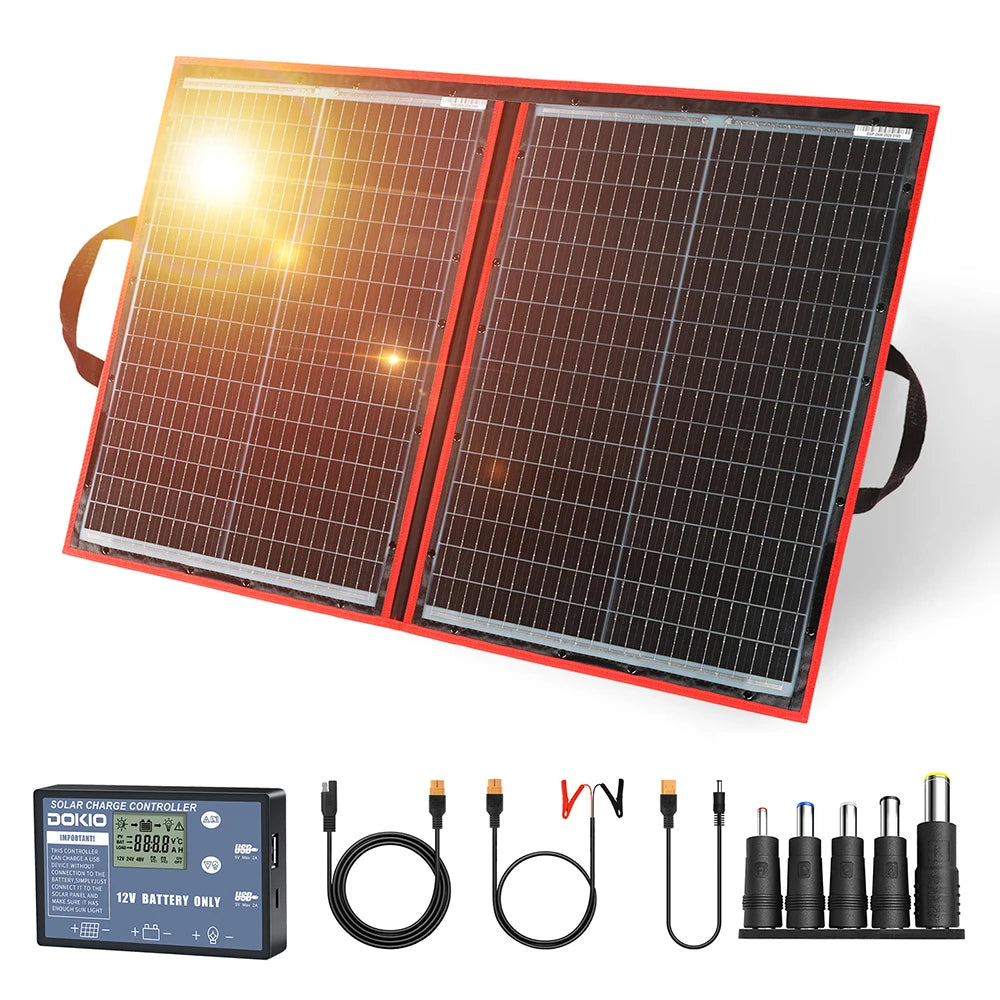

Package List:

1*100W Flexible Foldable Solar Panel (50W*2)

1*3M Wire,

1*10A 12V Controller,

(The above data is based on the laboratory standard test environment)

For field connections, use a minimum No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

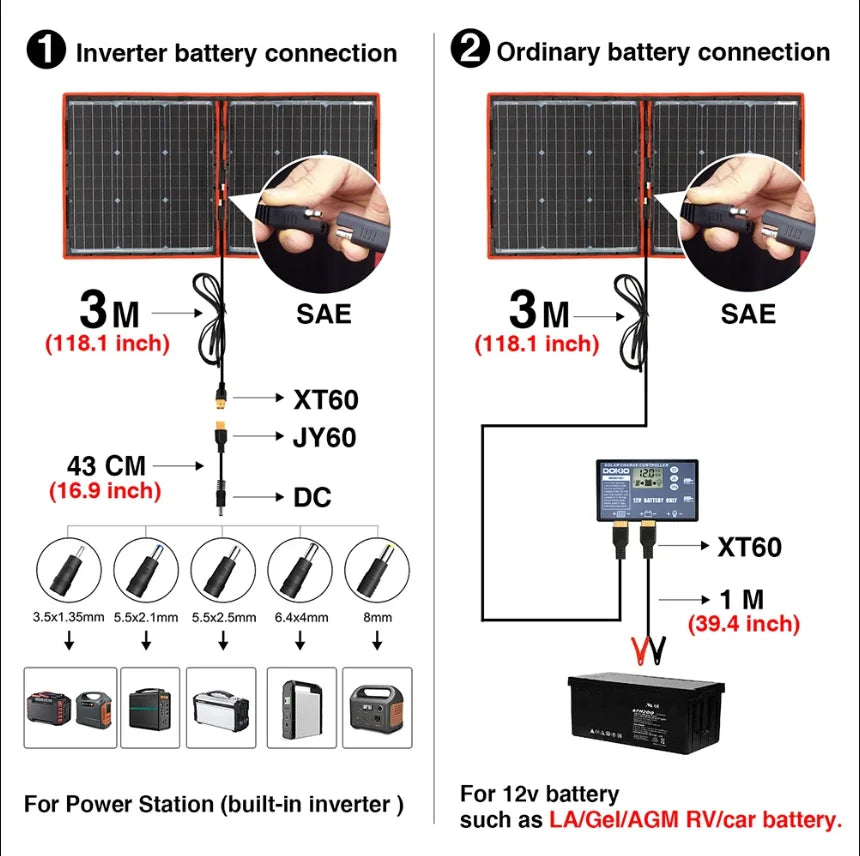

Controller supports lead-acid, lithium-ion and LiFePO4 batteries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
