100W/160W/200W Foldable Glass Solar Panel Kit with 12V Controller, Cable Set, for RV/Home/Backup Power
100W/160W/200W Foldable Glass Solar Panel Kit with 12V Controller, Cable Set, for RV/Home/Backup Power
Couldn't load pickup availability
SPECIFICATIONS
Certification: CE
Flexible Solar Panel: No
Foldable Solar Panel: Yes
High-Concerned Chemical: None
Material: Monocrystalline Silicon
Max. Power: 100W-200W
Model Number: FSP-100M, FSP-160M, FSP-200M
Number of Panels: 1
Rigid Solar Panel: Yes
Type: Solar Panel
Is_Customized: Yes
Our products have been upgraded,
the new glass folding 100W panel size: 90.5*63.5cm
the new glass folding 150W panel size: 90*91cm
the new glass folding 200W panel size: 132*76cm
Due to product upgrades and production batch issues, the appearance and size of the product you receive may vary. The four corners of this solar panel are equipped with black corner guards to protect the solar panel. If the corner protector is damaged, you can contact us to replace the corner protector for free. But this does not affect the work of the solar panel. We do not accept compensation. Please understand that.
Both 100W/150W and 200W solar panels come with a black DOKIO bag. For storing solar panels. Please avoid lifting heavy objects.

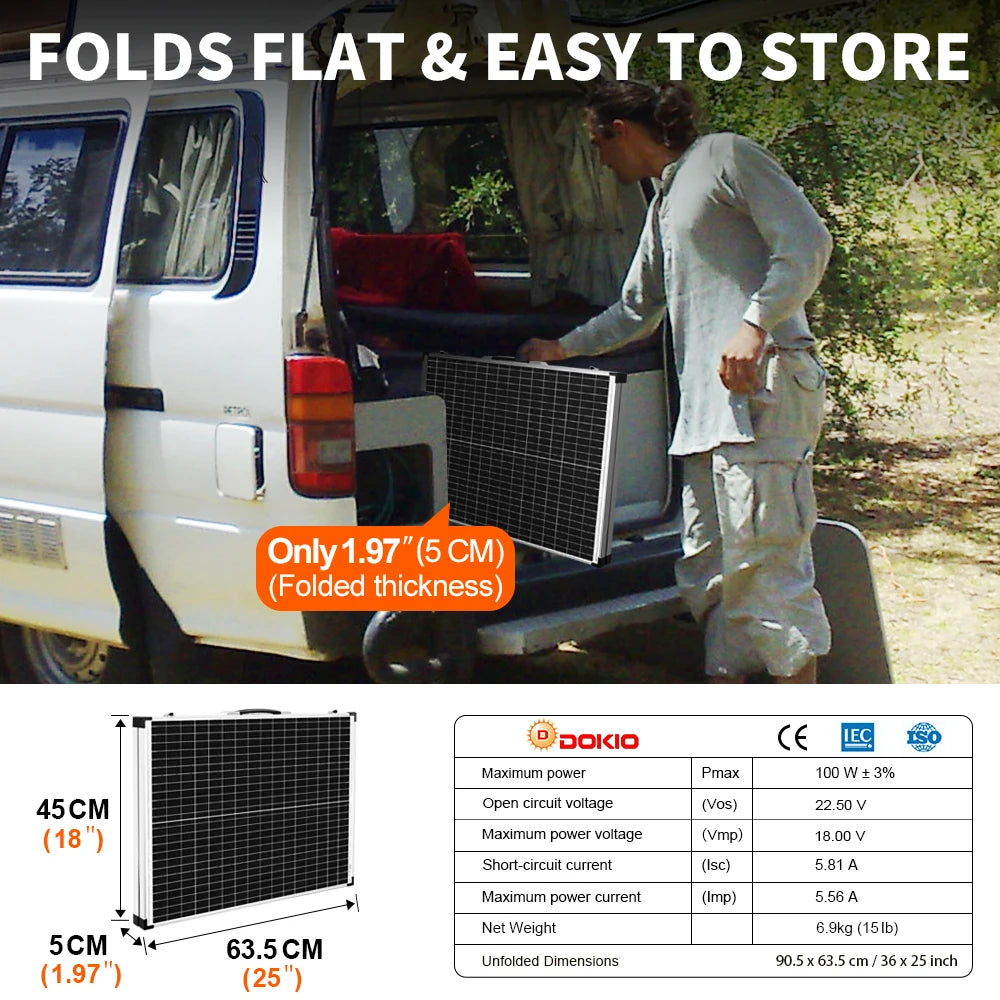

Model: FSP-100M
Material: Monocrystalline silicon
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc): 5.81A
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Nominal Operating Cell Temp: (NOCT)-45 to 80℃
Weight: 6.9kg
Foldable Dimension:
635*450*50(mm)
Expansion Dimension:
905*635(mm)/36*25(in)

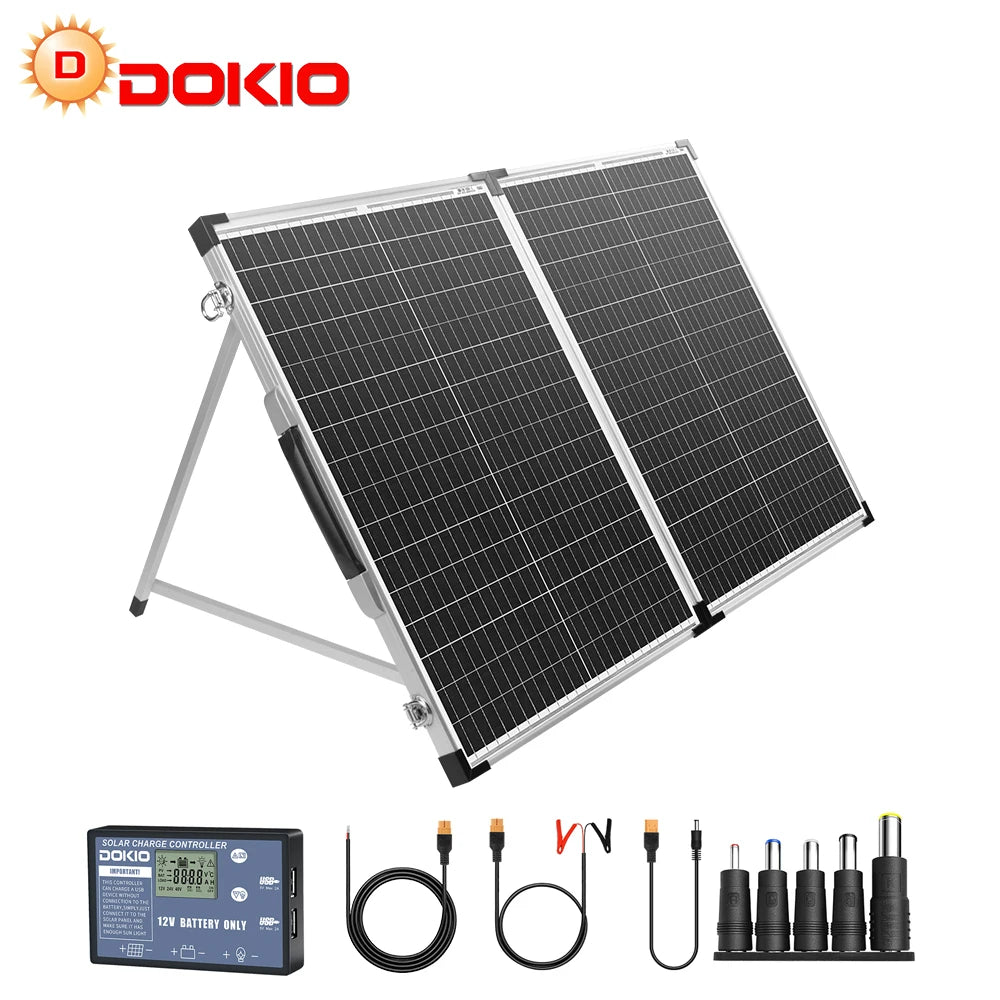

Package List:
100W solar panel *1
Alligator clip cable*1
10A PWM controller *1
DOKIO bag*1
Model: FSP-160
Material: Monocrystalline silicon
Maximum Power(Pmax): 160W
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 8.89A
Open-Circuit Voltage (Voc): 21.6V
Short-Circuit Current (Isc): 9.14A
Maximum System Voltage: DC1000V
Nominal Operating Cell Temp: (NOCT)-45 to 80℃
Weight: 11.4kg
Dimensions: 900*910mm/35.4*35.8 in

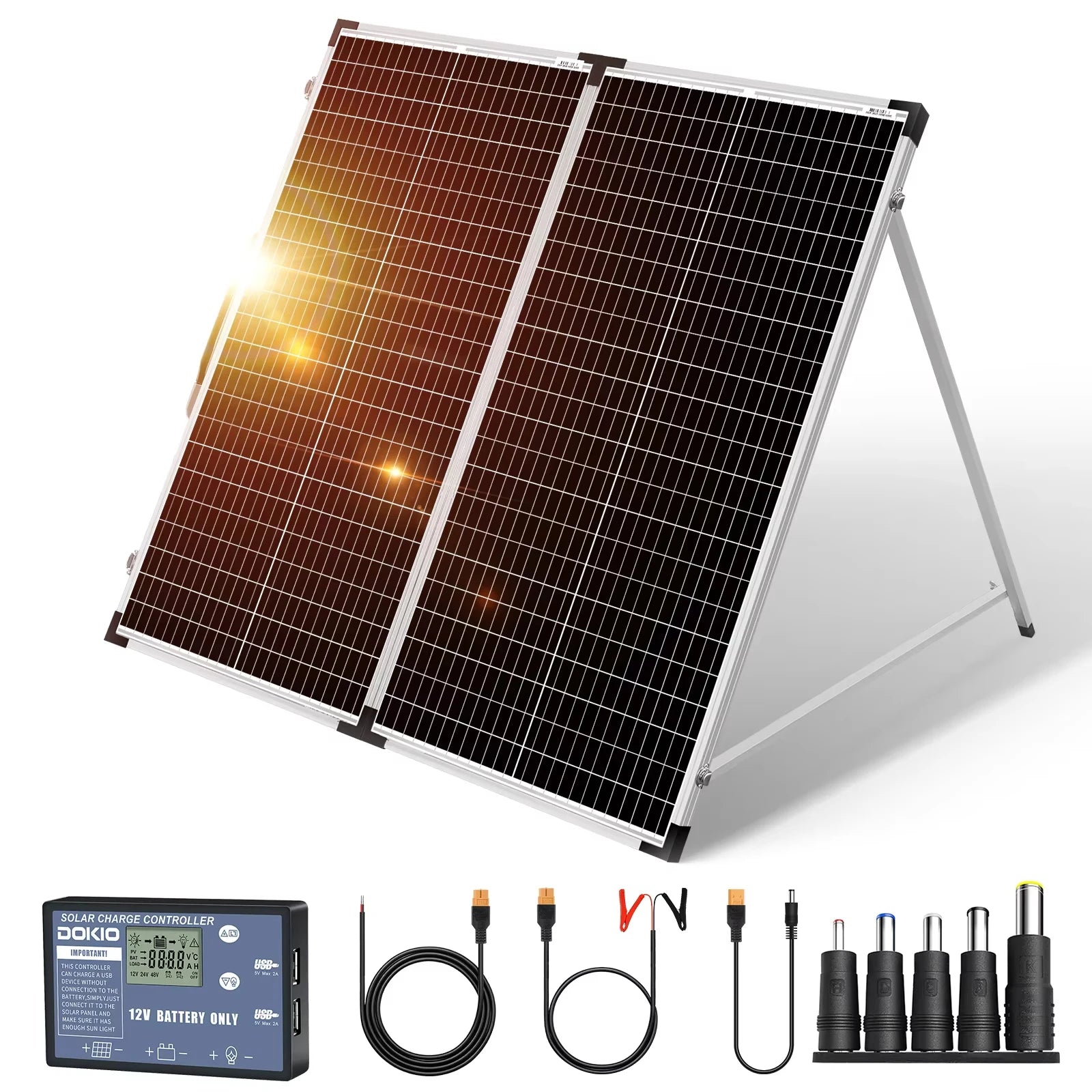

Package List:
160W solar panel*1
Alligator clip cable*1
10A PWM controller *1
DOKIO bag*1

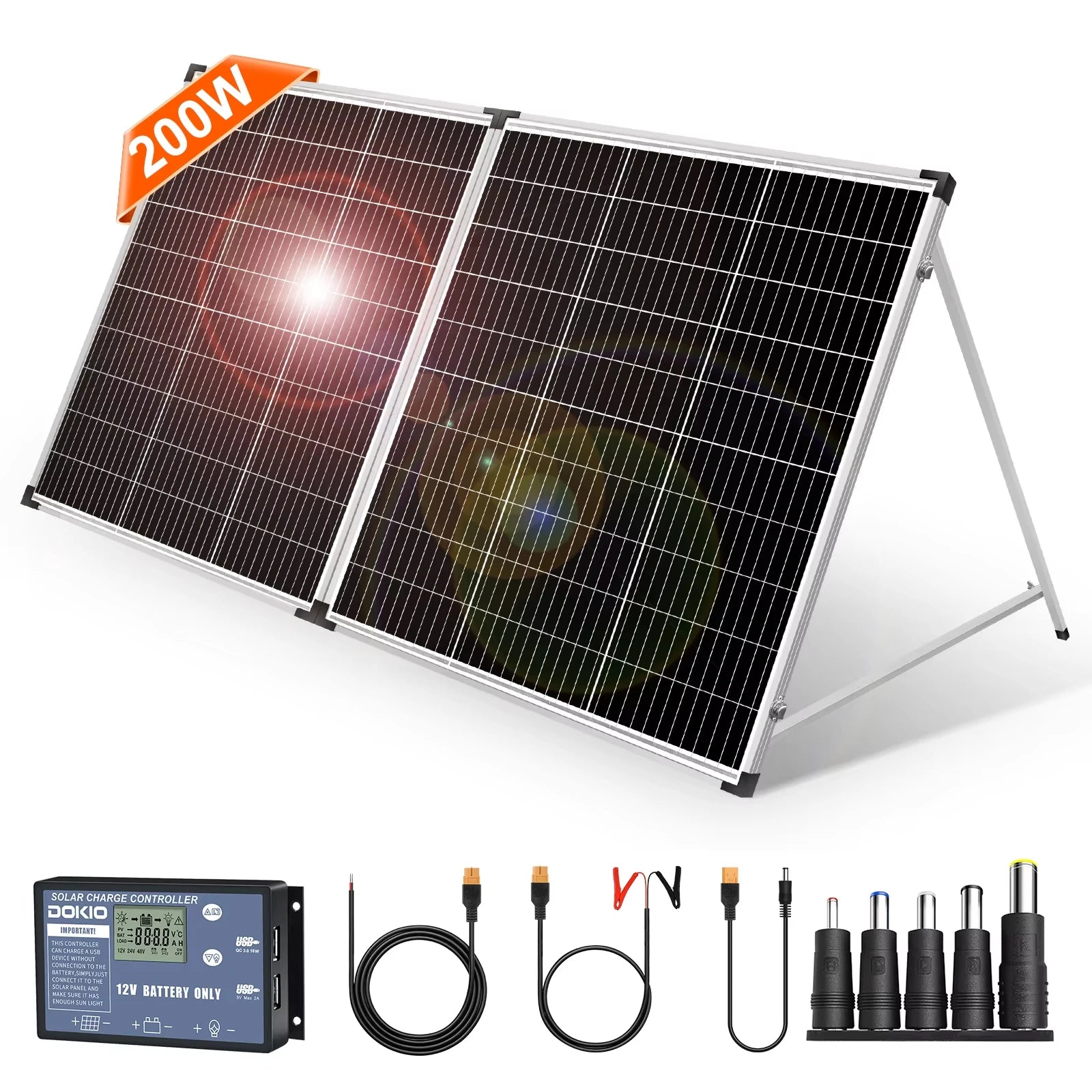

Model: FSP-200M
Material: Monocrystalline silicon
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 11.11A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc): 11.36A
Maximum System Voltage: DC1000V
Nominal Operating Cell Temp: (NOCT)-45 to 80℃
Weight: 11.8kg
Dimensions: 1320*760mm/52*30 in
Package List:
200W solar panel *1
Alligator clip cable*1
20A PWM controller *1
DOKIO bag*1
PS
The gray controller is suitable for 12V lead-acid, lithium-ion and LiFePO4 batteries.
No need to connect the battery to start.
New Size
common features
